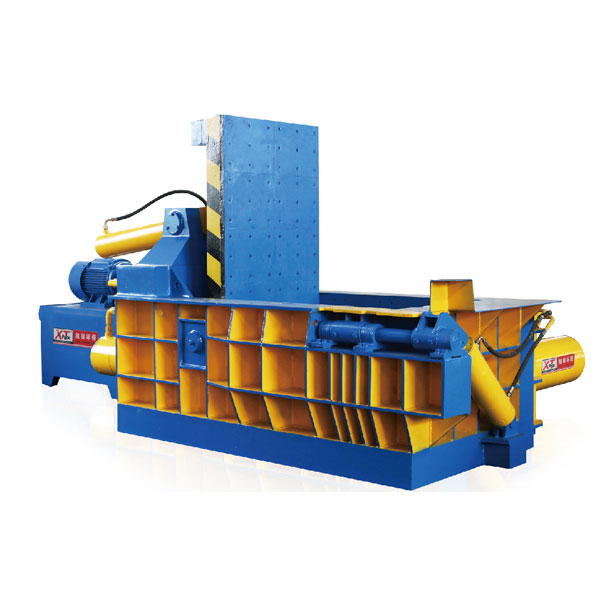

Horizontal Metal Balers
Usage of Horizontal Metal Balers
Specialized in the steel works, recycling processing industry, non ferrous and ferrous metal smelting industries; It can extrude any kind of metal leftover materials , steel shavings, waste copper and waste aluminum into qualified charging such as cuboid, cylinder, octagon baby and other shapes,the purpose is to reduce the costs of transportation and smelting.
Features of Horizontal Metal Balers
All the models driven by hydraulic, option can be manual or PLC automatic control
No need foundation bolts for installation, Power can be generated by diesel when no power at site
Bale out type: turn over, side push and front push
Extruding force has 8 classes from 63tons to 400tons and production efficiency is from 0.5tons per hour to 20 tons/hour
The chamber box size and bale size can be customized as per material size, two sides of feeding chamber fixing blades is an optional
Now the price of baler machine is reasonable, if you have needs, please contact us.

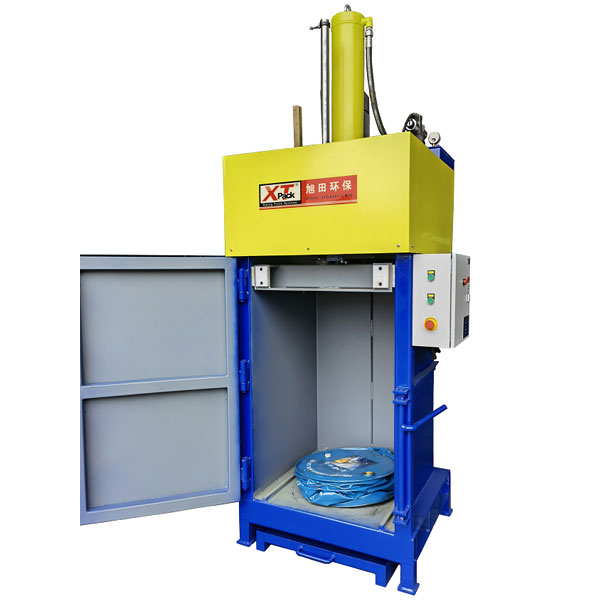

Steel/Oil Drum Baler
Usage of Steel/Oil Drum Baler
Specially used for compressing various steel drums like oil drums, paint drums etc. Widely use in the industries which generate huge amount of drums, greatly save space and convenient for transportation;
Main Features of Steel/Oil Drum Baler
●Bottom liquid receiver is optional for collecting the liquid
●Easily compress steel or oil drums without explosive content up to 200litre
●Spikes in the press plate puncture the drum and remove air
●Interlock system prevents the motor from running unless the door is closed
●The press plate will stop running downwards when the door is opened which ensure the safety of the operation
●Equipped with independent emergency stop for safe operation
●Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
●Equipped with NOK seals that from Japan means longer lifespan of the seals
●Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
Now the price of hydraulic drum crusher is low, if you have needs, please contact us.
As one of baler machine manufacturers, we will do our best to meet all the needs of customers.

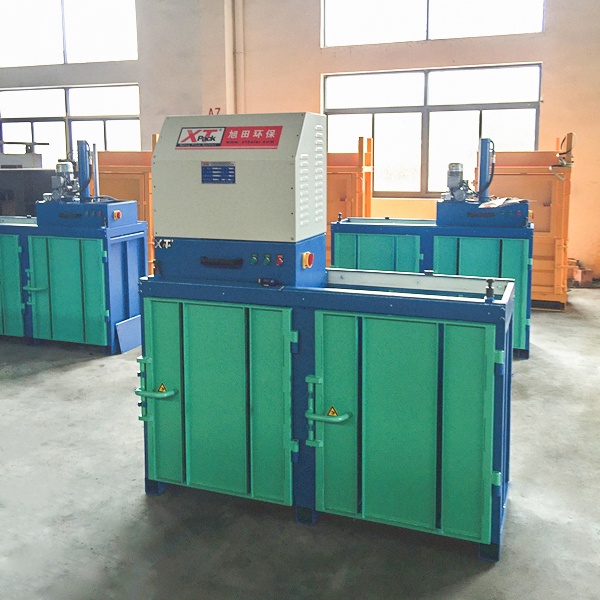

Twin Chamber Balers
Usage of Twin Chamber Balers
Specially used for compressing the waste like food residue, paper, plastics and textile etc. Which widely applied by the vessels, hotels,resorts and factories etc.
Features of Two Chamber Balers
Special ram guides design makes the platen not slope because of uneven materials feedings during compression
Equipped with NOK seals that imported from Japan means longer lifespan of the seals
Equipped with A.M.C oil pipe joints that imported from Japan ensures the machine far away from oil leakage problems
Large size feed opening and baling chamber for easier loading
Packaging slot on the door for convenience of observation and packing
Double chamber for different materials with higher efficiency
Now the price of baler machine for sale is reasonable, if you have needs, please contact us.

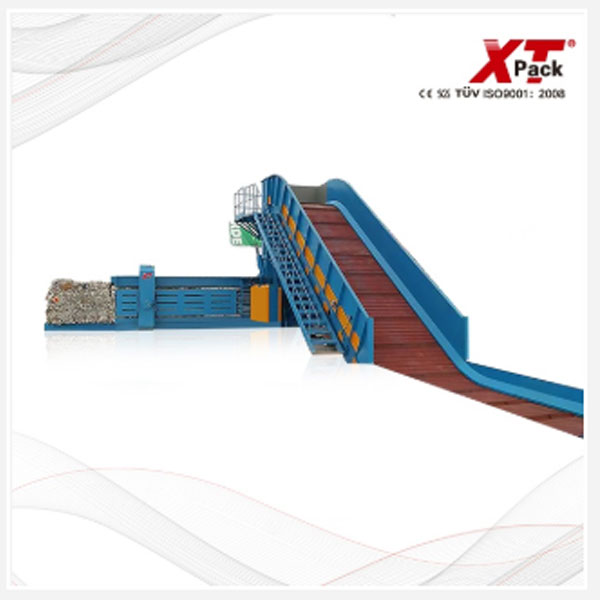

XTY-1000W11080L-60 Large-sized Full Automatic Balers
XTY-1000W11080L-60 Large-sized Full Automatic Channel Balers
The differences between the model XTY-1000W11080L-60 and the model XTY-1000W11080-60 are the feed opening size and the chamber size. Large feed opening size makes it handle larger size and more materials, which wins more and more people liking.
Pressing: 100tons
Main Motor Power: 45kw
Cooling System: air cooler/water cooler
Cycle Time (unload): 16s
Oil Reservoir: 1600L
Number of Belting: 4lines
Wire Size: Ø3.0-3.2
Feed Opening Size (L*W): 1800*1050mm
Chamber Size (L*W*H): 2400*1100*800mm
Bale Size (L*W*H, L can be adjustable): L*1100*800mm
Bale Density (OCC): 400-500kgs/m3
Throughput (30-60kgs/m3): 5-10tons/h
Machine Weight: 16tons
Machine Overall Dimension: 9100*4000*4200mm
Feeding Device: Conveyor
Feeding Width: 1800mm
Speed: 12m/min
Power: 7.5KW
Weight: 7tons
Overall Dimension: 11000*2300*5200mm
As a baler machine factory, we will do our best to meet all the needs of customers.

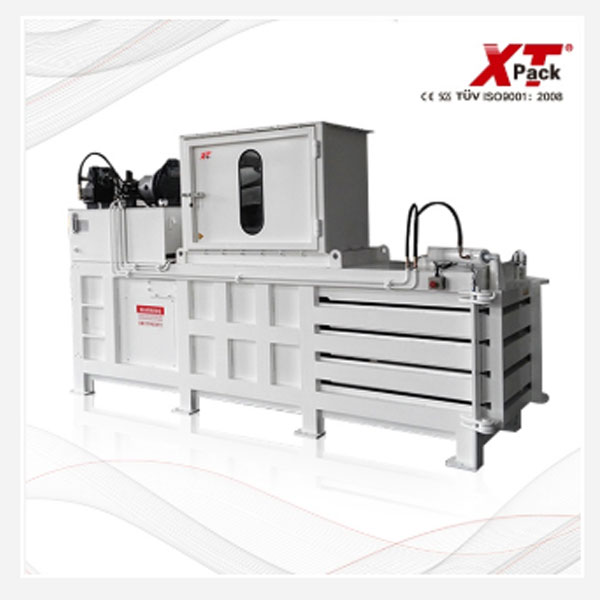

XTY-300WB7070 Large, Medium and Small sized Semi-Automatic Balers With Closed Gate
The horizontal semi-automatic balers are specialized in paperboard, plastics, waste computer shell, foam etc. It is extensively applied in a large amount of factories and recycling plants. Heavy duty close-gate design helps realize the high density more tighter bales.
Pressure: 30tons
Main Motor Power: 11kw
Cooling System: N/A
Cycle Time (unload): 27s
Oil Reservoir: 240L
Number of Belting: 3lines
Wire Size: Ø2.4-2.7
Feed Opening Size (L*W): 700*690mm
Chamber Size (L*W*H): 1700*690*690mm
Bale Size (L*W*H, L can be adjustable): 900*700*700mm
Bale Density（OCC）: 400-500kgs/m3
Throughput (30-60kgs/m3): 0.5-1ton/h
Machine Weight: 4tons
Machine Overall Dimension: 4200*1100*1900mm
Feeding Device: cyclone/beltconveyor
Feeding Width: 600mm
Speed: 12m/min
Power: 1.1kw
Weight: 1tons
Overall Dimension: 4500*800*2000mm
If you want to know more details of closed door baler, please contact us.
We can offer sorts of industrial baler machine for sale, if you are interested, please leave us a message.
